1. Export one existing model with supporting description into android APK file for deployment.
Contents:
1.0 Test your software installation
1.1 Test Ionic creating your first app
1.2 Create the basic structure of your EjsS app
1.3 Create your first EjsS app
1.4 Build and test your EjsS app1.5 Test templates and options in prepacking your EjsS app
1.6 Share your EjsS app
1.0 Test your software installation
Make sure you have Node (and NPM package) and Ionic installed by running simple commands to see what version of each is installed:

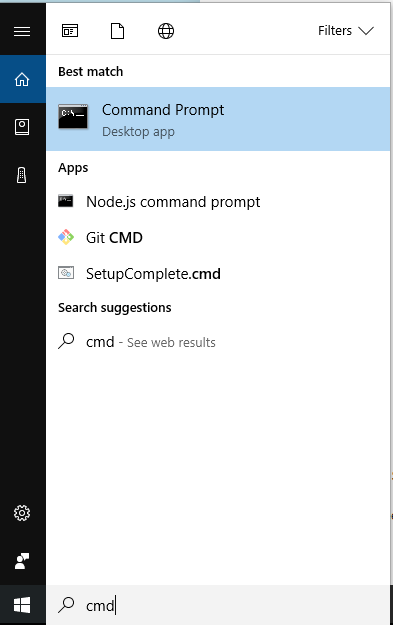

- Test Node. To see if Node is installed, open the Windows Command Prompt , by typing cmd on the windows find
, Powershell or a similar command line tool, and type node -v. This should print a version number, so you’ll see something like this v6.11.2 (or upper).
- Test NPM. To see if NPM is installed, type npm -v in Terminal. This should print NPM’s version number so you’ll see something like this 3.10.10 (or upper).
- Test Ionic. To see if Ionic is installed, type ionic -v in Terminal. This should print Ionic’s version number so you’ll see something like this 3.13.0 (or upper).
Note: new versions come out frequently. To install the updates, just download the installer and run it again.
Also make sure you have SDK Android installed and your Android device ready by running simple commands to see what version of each is installed:
- Test Android SDK. To see if Android SDK is installed, launch Android Studio, and open Android SDK.
This should show a SDK Android windows with packages installed.
This should show a SDK Android windows with packages installed.
- Debugging mode enabled in your device. Follow these steps using your mobile:
Launch the Settings
app and then swipe all the way down and tap on ‘About phone.’
Next scroll down in this menu as well and you should see an option called ‘Build number.’
Constantly tap on this option till you see a prompt on the display stating ‘You are now a developer.’
Now go back to the main Settings page and scroll all the way down once more.
You will see the new ‘Developer Options’
entry right on top of ‘About phone.’
Simply tap on it and start exploring what options you can manage.
Plug your Android smartphone or tablet into your computer with its USB cable.
Launch the Settings
app and then swipe all the way down and tap on ‘About phone.’
Constantly tap on this option till you see a prompt on the display stating ‘You are now a developer.’
Now go back to the main Settings page and scroll all the way down once more.
You will see the new ‘Developer Options’
Simply tap on it and start exploring what options you can manage.
Plug your Android smartphone or tablet into your computer with its USB cable.
Ionic provides you with a set of commands to make easy to create hybric apps. In order to test your Ionic installation, the following step shows how to create a simple app.
- Type npm install -g cordova ionic in Terminal. This should install Ionic or check your Ionic installation. Also type ionic info in Terminal to display version information.
Note: Ionic tools require some environment variables to be set in order to function correctly. It will attempt to set these variables for you, but in certain cases you may need to set them manually. See this link.
- Type ionic start myApp tabs in Terminal. This should create an Ionic app using one of our ready-made app templates, in particular, tabs template. Other templates are blank and sidemenu.
- Run your app in your browser. Type cd myApp and then ionic serve in Terminal. This should allow you to build your app in the browser.
You can cancel the running using Ctrl+C.
- Run your app in your Android device. Firstly, check if USB debugging is enabled on your Android device, then type ionic cordova run android --device in Terminal. This should produce a debug build of your app, both in terms of Android and Ionic’s code.
Note: ignore warnings and error messages. If the app is not running in your mobile, please try to type the command again. If the problem remains, maybe your Android SDK platform is not installed (check it using Android Studio) or your Android SDK is located in unusual directory (then you need to set ANDROID_HOME) or you need http://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html, however please let us know.
Note: other relevant problem with Ionic is its dependeces with other packages, e.g. cordova or angular. Sometimes when we use the latest versions, we can find compatibility issues. In this case, if you need to install a previous version of cordova.
The display shows where you can find the files APK that you can distribute (e.g. via email) to install your app in any Android device.
Your mobile should ask you for letting your computer launch apps. Check "Always allow from this computer"
and click OK.
Finally, your device should launch your app.
1.2 Create the basic structure of your EjsS app
- Create a new blank Ionic project. Type ionic start MyModelApp blank in Terminal. The blank template is a bare starter with a single page.
This should create a new project with the following directory structure. Type cd MyModelApp and check this directory structure.
For now, we only need to know about the src and www directories. Inside of the src directory we find our uncompiled TypeScript code. When we run ionic serve, our code inside of src/ is transpiled into HTML/Javascript code. That means we can work at a higher level using TypeScript, but compile down to the standard form of HTML/Javascript that the browser needs.
- Add target platforms. It depends on your platform, focusing on Android, type ionic cordova platform add android in Terminal. For iOS, type ionic cordova platform add ios. Using ionic info you can display information about Android platform.
- Add particular plug-ins. Our EjsS app require the following plugins.
Note: another alternative to type cordova plugin is ionic cordova plugin.
- Run your blank app in your browser. Type ionic serve in Terminal. This should allow you to build your app in the browser.
- Save the basic structure to be reused in future apps. Copy&Paste the directory MyModelApp and then you could reuse the basic structure of your EjsS apps in future projects.
1.3 Create your first EjsS app
- Open your EjsS simulation. Choose a EjsS simulation in order to create its Ionic app. We propose to use MassAndSpring simulation (ejss_src_MassAndSpring.zip on the workshop directory).
- Create the prepackaged files with EjsS. Click
using the right mouse button and select "Prepackage for App".
Choose how you want to build your Ionic app. For default, use Ionic v2 because Ionic v1 is to support old Ionic versions. Choose your app template (side menu, tabs, slides or card). Lock screen if you need. And finally you can display full screen (i.e. menu options automatically disappear) or/and show firstly your simulation (no description pages).
Save your app prepackage in your workspace export directory. The typical name will be ejss_app_XXX.zip.
In addition, EjsS will show a window to open a web page with the process to create an app. If you are following this blog, you do not need to open this web page.
- Check the content of your prepackage files. Unzip the file and review the content. You should find the src and www directories with the files generated by EjsS.
- Copy files from your prepackage to the Ionic project. Now, we will extract the prepackaged files created with EjsS and work to modify the www and src folders of your project. Unzip the file you created with EjsS and overwrite all files.
1.4 Build and test your EjsS app

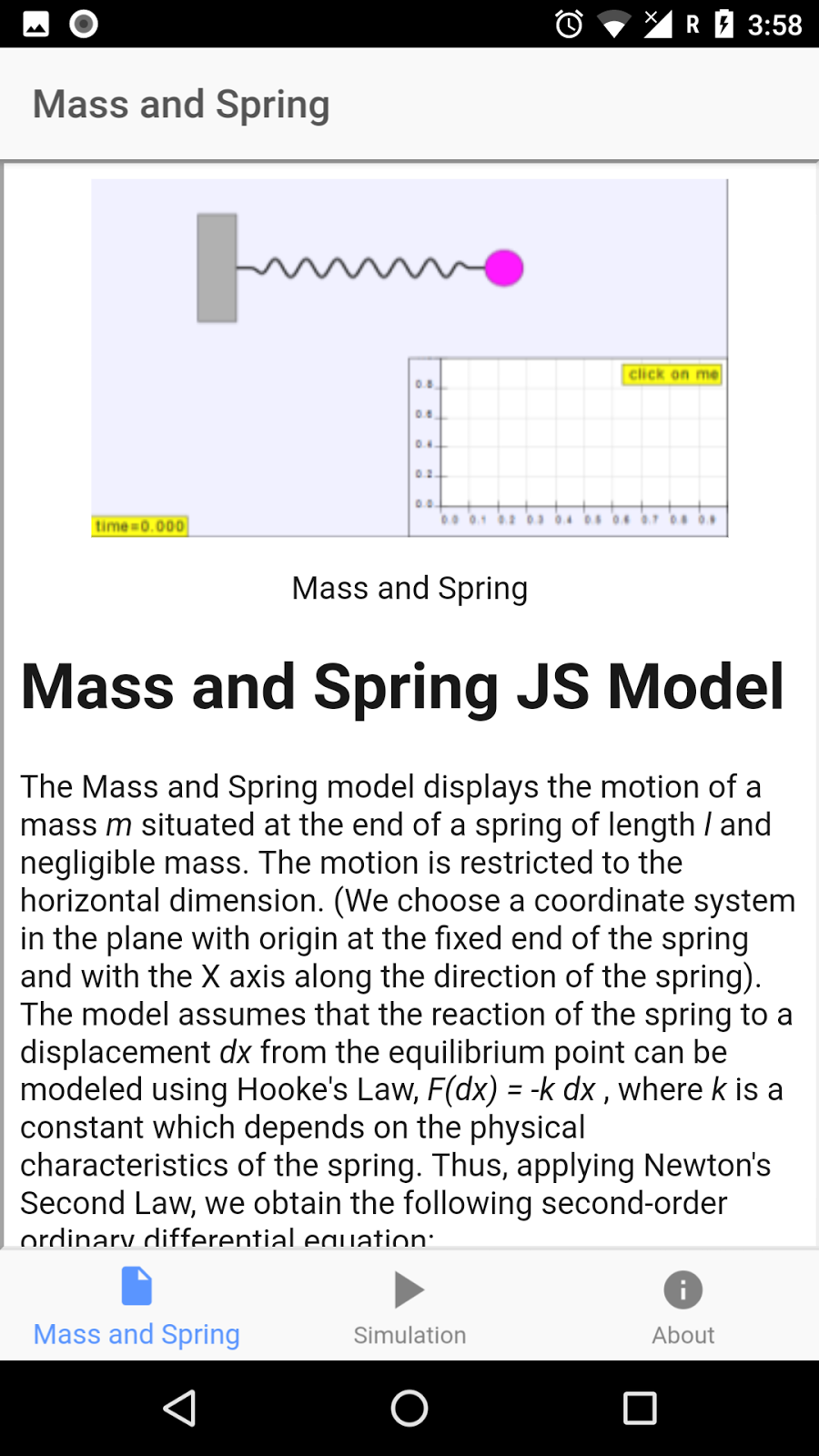

- Test your app in your Android device. Type ionic cordova run android in Terminal (you need your device connected).
1.5 Test templates and options in prepacking your EjsS app
- Create an app for each template (i.e. Side Menu, Tabs, Slides Intro, and Card). Follow the previous steps 1.3 and 1.4. You can use the same project (and the same directory).
- Test options in prepacking. The Screen Locking option is interesting when our simulation has a good usability only with a specific orientation. Also we can use the option Show Simulation First to first show the simulation when the app is open. Test both properties creating a new app.
Finally, the Display Full Screen option hides the menu bar to show the simulation using full screen.
1.6 Share your EjsS app. You can easily share your app, email the apk file and open it into your mobile phone.
Note: sign and publish your app is out of scope, but you can get more information in this link.
Note: ignore warnings and error messages. If the app is not running in your mobile, please try to type the command again. If the problem remains, maybe your Android SDK platform is not installed (check it using Android Studio) or your Android SDK is located in unusual directory (then you need to set ANDROID_HOME) or you need http://www.oracle.com/technetwork/java/javase/downloads/jdk8-downloads-2133151.html, however please let us know.
Note: other relevant problem with Ionic is its dependeces with other packages, e.g. cordova or angular. Sometimes when we use the latest versions, we can find compatibility issues. In this case, if you need to install a previous version of cordova.
The display shows where you can find the files APK that you can distribute (e.g. via email) to install your app in any Android device.
Your mobile should ask you for letting your computer launch apps. Check "Always allow from this computer"
and click OK.
Finally, your device should launch your app.
1.2 Create the basic structure of your EjsS app
- Create a new blank Ionic project. Type ionic start MyModelApp blank in Terminal. The blank template is a bare starter with a single page.
This should create a new project with the following directory structure. Type cd MyModelApp and check this directory structure.
For now, we only need to know about the src and www directories. Inside of the src directory we find our uncompiled TypeScript code. When we run ionic serve, our code inside of src/ is transpiled into HTML/Javascript code. That means we can work at a higher level using TypeScript, but compile down to the standard form of HTML/Javascript that the browser needs.
- Add target platforms. It depends on your platform, focusing on Android, type ionic cordova platform add android in Terminal. For iOS, type ionic cordova platform add ios. Using ionic info you can display information about Android platform.
- Add particular plug-ins. Our EjsS app require the following plugins.
> cordova plugin add ionic-plugin-keyboard
> npm install --save @ionic-native/keyboard
> cordova plugin add cordova-plugin-screen-orientation
> npm install --save @ionic-native/screen-orientation
Note: another alternative to type cordova plugin is ionic cordova plugin.
- Run your blank app in your browser. Type ionic serve in Terminal. This should allow you to build your app in the browser.
- Save the basic structure to be reused in future apps. Copy&Paste the directory MyModelApp and then you could reuse the basic structure of your EjsS apps in future projects.
1.3 Create your first EjsS app
- Create the prepackaged files with EjsS. Click
using the right mouse button and select "Prepackage for App".
Choose how you want to build your Ionic app. For default, use Ionic v2 because Ionic v1 is to support old Ionic versions. Choose your app template (side menu, tabs, slides or card). Lock screen if you need. And finally you can display full screen (i.e. menu options automatically disappear) or/and show firstly your simulation (no description pages).
Save your app prepackage in your workspace export directory. The typical name will be ejss_app_XXX.zip.
In addition, EjsS will show a window to open a web page with the process to create an app. If you are following this blog, you do not need to open this web page.
- Check the content of your prepackage files. Unzip the file and review the content. You should find the src and www directories with the files generated by EjsS.
- Copy files from your prepackage to the Ionic project. Now, we will extract the prepackaged files created with EjsS and work to modify the www and src folders of your project. Unzip the file you created with EjsS and overwrite all files.
1.4 Build and test your EjsS app
- Test your app in browser. Type ionic serve in Terminal. This should allow you to build your app in the browser.
- Test your app in your Android device. Type ionic cordova run android in Terminal (you need your device connected).
1.5 Test templates and options in prepacking your EjsS app
- Create an app for each template (i.e. Side Menu, Tabs, Slides Intro, and Card). Follow the previous steps 1.3 and 1.4. You can use the same project (and the same directory).
- Test options in prepacking. The Screen Locking option is interesting when our simulation has a good usability only with a specific orientation. Also we can use the option Show Simulation First to first show the simulation when the app is open. Test both properties creating a new app.
Finally, the Display Full Screen option hides the menu bar to show the simulation using full screen.
1.6 Share your EjsS app. You can easily share your app, email the apk file and open it into your mobile phone.
Note: sign and publish your app is out of scope, but you can get more information in this link.
2. Decide on one/two simulation to work in pairs or alone, continue to improve your chosen customised simulation.
- Try to create a preliminary app with your simulation.
- Decide what prepacking options are the best for your simulation.
- Decide what prepacking options are the best for your simulation.
3. Advanced features of EjsS like how to debug using Chrome Developer Tools, debug our EjsS apps, and adapt Ionic templates.
3.1 How to debug using Chrome Developer Tools
- My first debugging using window.alert("hello")
Debugging JavaScript code in EjsS can sometimes be a little time consuming. If you are just beginning JavaScript/EjsS you may start using alert() or window.alert(). Try to use this function to show the value of your variables or only checking running points.
For example, add this code in your Mass And Spring app:
And this code in the onclick event of the labelTitle element:
Check and verify both alert functions using your browser.
- Continue to debug using console.log("hello")
You may find alert() a little unsuitable because it breaks the running. In this case, you can use console.log() to display your text in Console.
First, you can find Console into Developer tools (or F12 key).
Developer Tools window includes several tabs, select Console.
Now, change your alert() functions for console.log() functions, and then test the Console output.
Console will also show any error or warning message generated by our simulation.
- Use Chrome DevTools
While these two previous approaches may work, they usually involve a lot of writing and deleting code, going back and forth between your browser and the EjsS Authoring Tool.
Google Chrome browser comes with developer tools that can help us in debugging JavaScript/EjsS code, among other things:
The main method to debug JavaScript is using breakpoints (places where code execution can be stopped), and examine variables while the code is executing.
Unfortunately, the position of breakpoints is not well interpreted by Chrome and sometimes it is difficult to find the right breakpoint location.
Finally, other way to debug is using the debugger keyword that stops the execution of JavaScript, and calls the debugging function. This has the same function as setting a breakpoint in the debugger.
For more information, see this link.
3.2 How to debug our EjsS app
3.3 How to adapt Ionic templates and final EjsS apps
- Change name, author, description and identifier. The config.xml file includes default information that you can edit freely. Change these values for your app.
- Change your app icon. Two alternatives, use ionic cordova resources (you need to have an ionic account), or directly place the source image in the respective platform’s directory. For example, to use a different icon for Android, the image should follow this path: resources/android/icon/*.
The starting point to adapt your app is when you can see it in your browser using ionic serve. This lets you see in real-time how your EjsS app changes.
Check the content of the src directory. It depends on the original Ionic template used (sidemenu, tabs, cards or slides).
- /www/model_pages: simulation pages and description pages.
- /www/js/pages.js: internal javascript variables.
For more information, see this link.
3.1 How to debug using Chrome Developer Tools
- My first debugging using window.alert("hello")
Debugging JavaScript code in EjsS can sometimes be a little time consuming. If you are just beginning JavaScript/EjsS you may start using alert() or window.alert(). Try to use this function to show the value of your variables or only checking running points.
For example, add this code in your Mass And Spring app:
And this code in the onclick event of the labelTitle element:
Check and verify both alert functions using your browser.
- Continue to debug using console.log("hello")
You may find alert() a little unsuitable because it breaks the running. In this case, you can use console.log() to display your text in Console.
First, you can find Console into Developer tools (or F12 key).
Developer Tools window includes several tabs, select Console.
Now, change your alert() functions for console.log() functions, and then test the Console output.
Console will also show any error or warning message generated by our simulation.
- Use Chrome DevTools
While these two previous approaches may work, they usually involve a lot of writing and deleting code, going back and forth between your browser and the EjsS Authoring Tool.
Google Chrome browser comes with developer tools that can help us in debugging JavaScript/EjsS code, among other things:
- Editing CSS - Using the Element tab you can select an element in the browser, e.g a panel, right click on it and select inspect element. This gives you an option to edit the css on the far right.
- Testing performance - Using the Performance tab, in which you can see how long it takes to run any function of your application.
- Debugging JavaScript - Using the Sources tab you can debug JavaScript code. This is what we will talk about following.
The main method to debug JavaScript is using breakpoints (places where code execution can be stopped), and examine variables while the code is executing.
Unfortunately, the position of breakpoints is not well interpreted by Chrome and sometimes it is difficult to find the right breakpoint location.
Finally, other way to debug is using the debugger keyword that stops the execution of JavaScript, and calls the debugging function. This has the same function as setting a breakpoint in the debugger.
For more information, see this link.
3.2 How to debug our EjsS app
The best way to debug our EjsS app is to use our Chrome browser. Run our simulation typing ionic serve and then check the Console tab.
In addition, set a breakpoint and examine variables.
Debugging using breakpoints in apps is less problematic than directly running our simulation from EjsS Authoring Tool.
- Change name, author, description and identifier. The config.xml file includes default information that you can edit freely. Change these values for your app.
- Change your app icon. Two alternatives, use ionic cordova resources (you need to have an ionic account), or directly place the source image in the respective platform’s directory. For example, to use a different icon for Android, the image should follow this path: resources/android/icon/*.
To create your icon, this link provides you with an online tool to upload an image and then download a zip file with icons. Follow these steps:
- Open Launcher icon generator, upload an image and set your options.
- Download the zip file, upzip it, and copy/rename all png files into resources/android/icon/
- Run your app typing ionic cordova run android
In the same way, you can change your splash images in the resources/android/splash/*.
- Change the Ionic template. Any Ionic template can be adapted and improved, you only have to modify the src files that are generated by EjsS Authoring Tool.
The starting point to adapt your app is when you can see it in your browser using ionic serve. This lets you see in real-time how your EjsS app changes.
Check the content of the src directory. It depends on the original Ionic template used (sidemenu, tabs, cards or slides).
- /src/pages/about: about page. For example, edit about.html and change the title "About this app" for "Info about this app". Now, review your browser and check the change.
- /src/pages/home: main page
- /src/pages/<template>: template pages
- /www/model_pages: simulation pages and description pages.
- /www/js/pages.js: internal javascript variables.
For more information, see this link.
No comments:
Post a Comment
